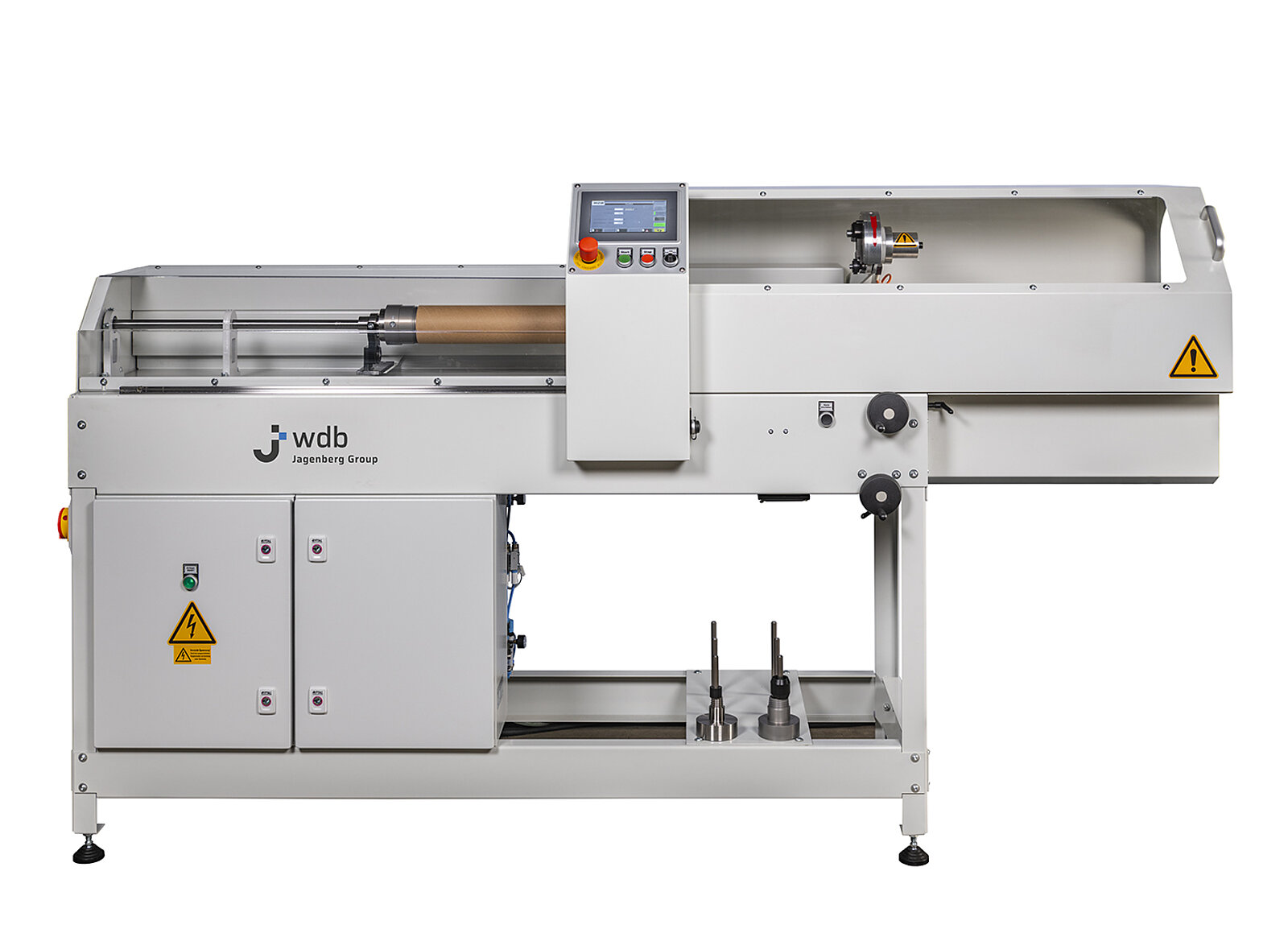

CORE CUTTER K-1200 AS

42393

The easy cutting of cardboard tubes will be ensured by the core cutting system of WDB, due to uncompromising and modern technique along with the K-Series. The continuous development of these cardboard cutting machines shows many new technical features.

Description

Well cut cores are the basic condition for a smooth production and winding process. Our automatic core cutting machines incorporate years of experience and continuous improvements to reduce the physical effort of your employees and time costs to a minimum.

A robust, uncompromising design combined with the latest control technology “Made in Germany” rounds off the concept. All parameters can be entered via a touch panel, and the operating elements for the most important steps are always within reach of the operator (e.g. feeding the cores).

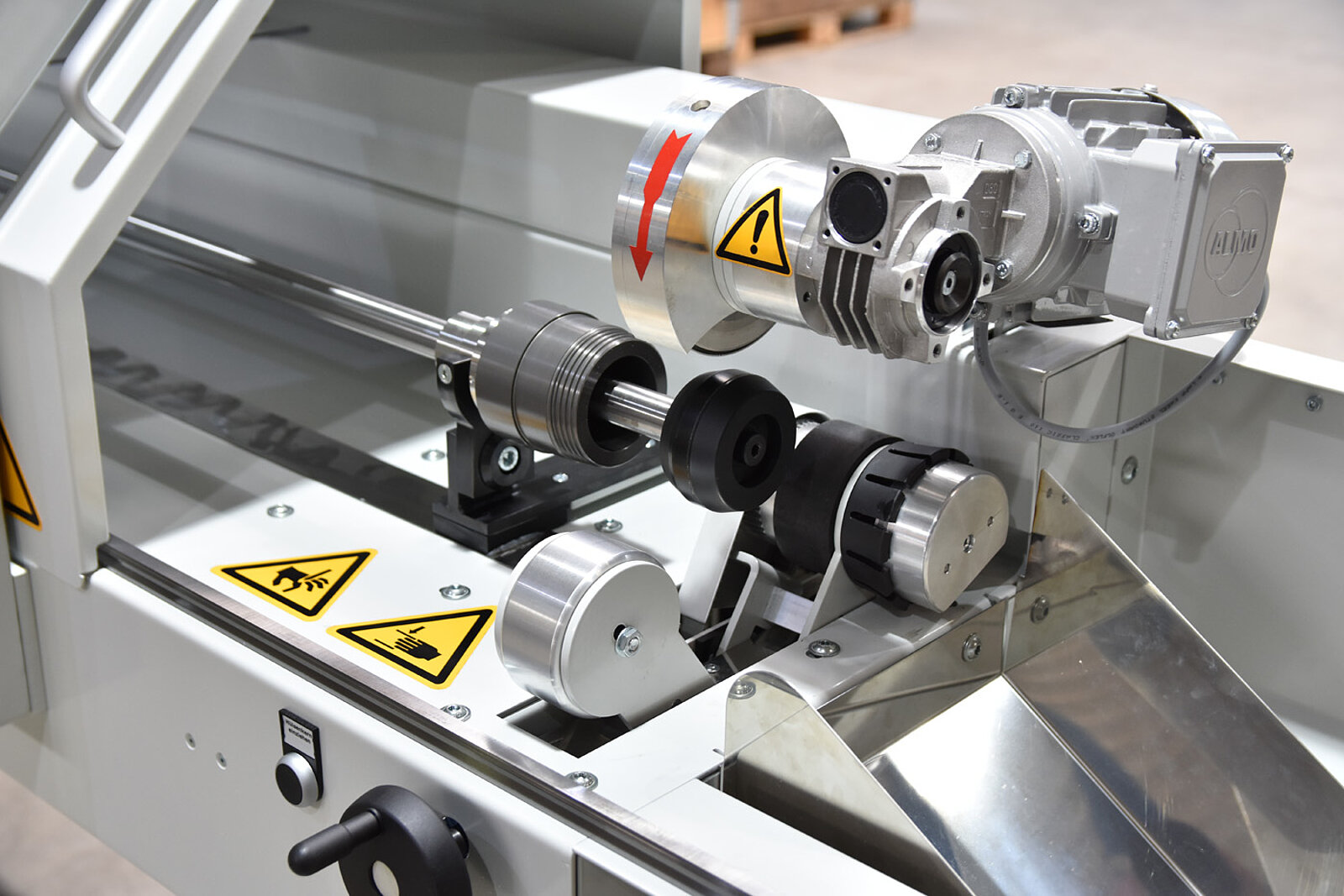

The core cutter has, optionally, a free-running or driven core knife. By means of a servo drive, a wide range of cutting widths can be programmed and are automatically run off. A complete enclosure provides maximum protection for your employees and also reduces dust and noise pollution in the working area.

If you have any questions about your future core cutter or special requirements, please feel free to contact us and our team will work with you to find the best possible solution for you.

Technical Data

Print width Max. up to 3500 mm, Standard Size 1200 mm
  Laser scan of core ends during operation
  Self-developed Vibration Stop prevents the rocking in the cutting process
  Better replacement of cores, due to the special supported main shaft
Machine operation Control panel / manually by control switch
  Drive of the servo motors by a PLC
Roller diameter Min. 25 mm / max. 152 mm
