CONTRACT MANUFACTURING

CNC contract manufacturing for the mechanical engineering and special machine construction.

We manufacture Items according to your drawings and produce for varied sectors on our manufacturing machines.

Contract manufacturing – Assembly production – Construction – Installation service

CNC contract manufacturing for the mechanical engineering and special machine construction

We manufacture Items according to your drawings and produce for varied sectors on our manufacturing machines.

Offer:

  • CNC Turning (ø 680 mm x 1.000 mm)
  • Conventional Turning (ø 500 mm x 3.500 mm)

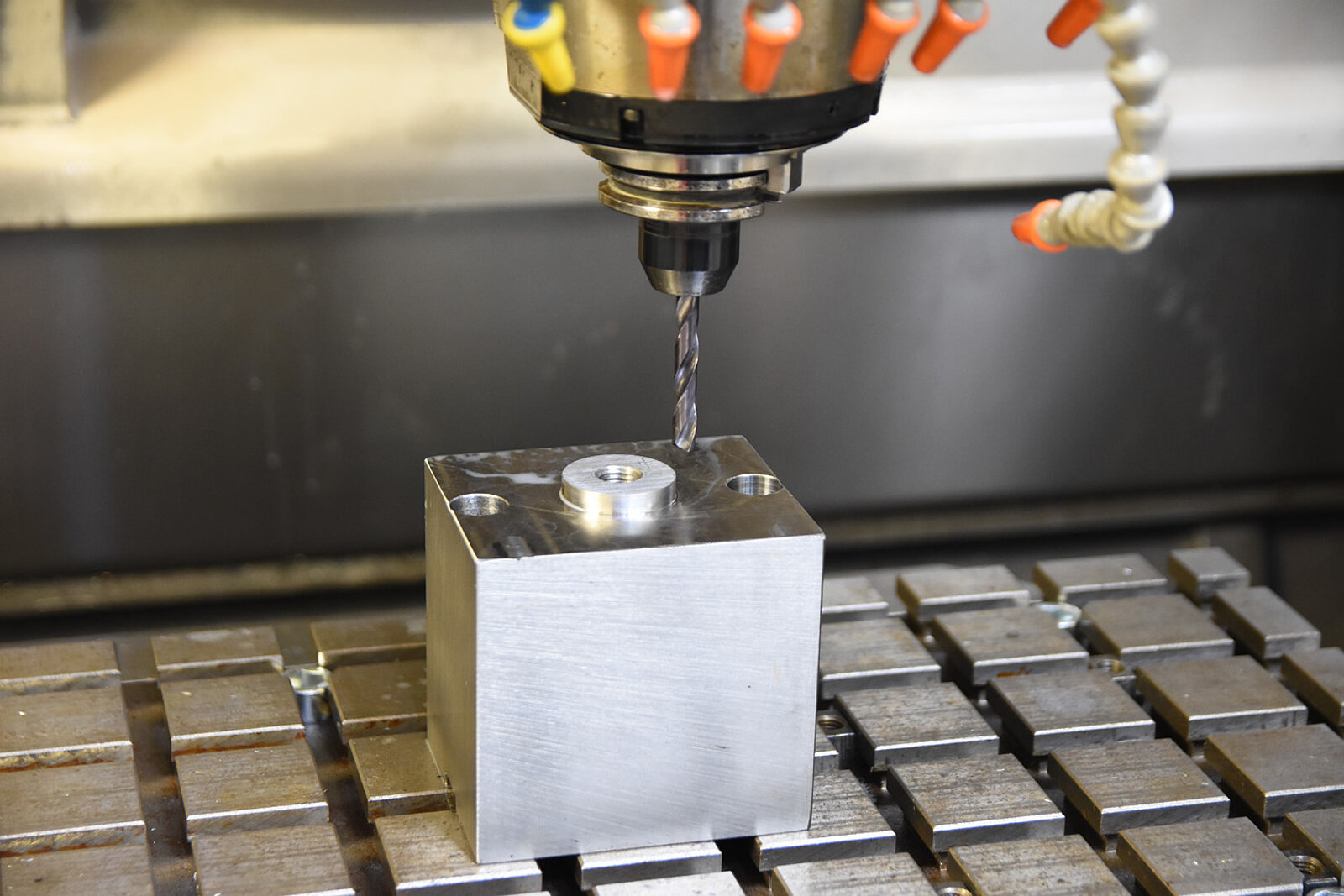

  • CNC Milling (4.200 mm x 1.400 mm x 1.300 mm)
  • Welding: MIG – MAG, WIG, pulse welding

Acquisition of:

  • Grinding work, interlock, heat treatment, sheet metal treatment, etc.

Customer-focused assembly production / mechanical engineering according to your constructions

In general we manufacture the desired power unit or assembly / machine for the mechanical engineering according to your drawing / construction.

Customer-focused Construction and control engineering

  • Constructions via 2/3D-CAD (AutoCAD and Inventor)
  • Control engineering (SPS S7)
  • Drive dimensioning and programming for Servos (Bosch Rexroth and Siemens)
  • Control cabinet construction

Assembly Service

Transfer of production plants

  • With simultaneous modernization
  • Consultation for your individual application

Reconstruction on site:

  • Adjustment of production facility to changed requirements

Technical Data

CNC Turning
(Gildemeister CTX-400-E)
Traverses:
ø 320 x 600
ø 50 / from bar
12-station turret VDI 30
Tapping device
Controller: Heidenhain
CNC- Turning
(Gildemeister CTX-400 S2)
Traverses:
ø 320 x 600
12-station turret VDI 30
Controller: Heidenhain Turn Plus
CNC- Turning
(Gildemeister CTX-500 S2)
Traverses:
ø 680 x 1000
12- station turret VDI 40
Driven tools and C-axis
Controller: Heidenhain Turn Plus
CNC-Milling
(W4200-CNC)
x=4200 / y=1400 / z=1300
SK 40 vertical and horizontal
4. Axis, round table horizontal 01400
5. Axis, indexing head vertical 0400
Tool changer 30 positions
Control: Heidenhain iTNC-530
CNC-Milling
(Hedelius RS80-K2300)
x = 2300 / y = 800 / z = 600
Tool changer 30 positions / SK40
Controller: Heidenhain iTNC-530
5- axes
automatic swivel rotary table ø 800
CNC-Milling
(Hedelius BC100-2500)
x = 2300 / y = 1000 / z = 770
Tool changer 40 positions / SK40
Controller: Heidenhain iTNC-530
CNC-Milling
(Mikron UMC-600)
Traverses:
x=600 / y=600 / z=500
SK 40
Tool changer 44 positions / SK40
automatic vertical and horizontal 4th axis
5th axis automatic rotary table ø 500
Controller: Heidenhain TNC 426
CNC-Milling
(Mikron VC-750)
x=760 / y=510 / z=560
SK 40 / Tool changer 20 Positions
Controller: Heidenhain TNC 426
Groove shaper 4P9 – 16P9 to 80 mm depth
Conventional drilling Radial drilling machine Breda R45-1210 / ø 50 in steel
quick radial Donau DR-23 / ø 23 in steel
quick radial Donau DR-32 / ø 32 in steel
Welding MIG – MAG / 400A
WIG / 200A
pulse welding / 270A
Steel construction up to 6000 x 6000 x 1500 mm
Press 60 Tons
Indoor crane Up to 4.000 kg
Forklift Up to 4.000 kg
conventional Turning ø 500 x 3000
ø 270 x 1250 ø
180 x 800
all with digital display
