CPS MODUL

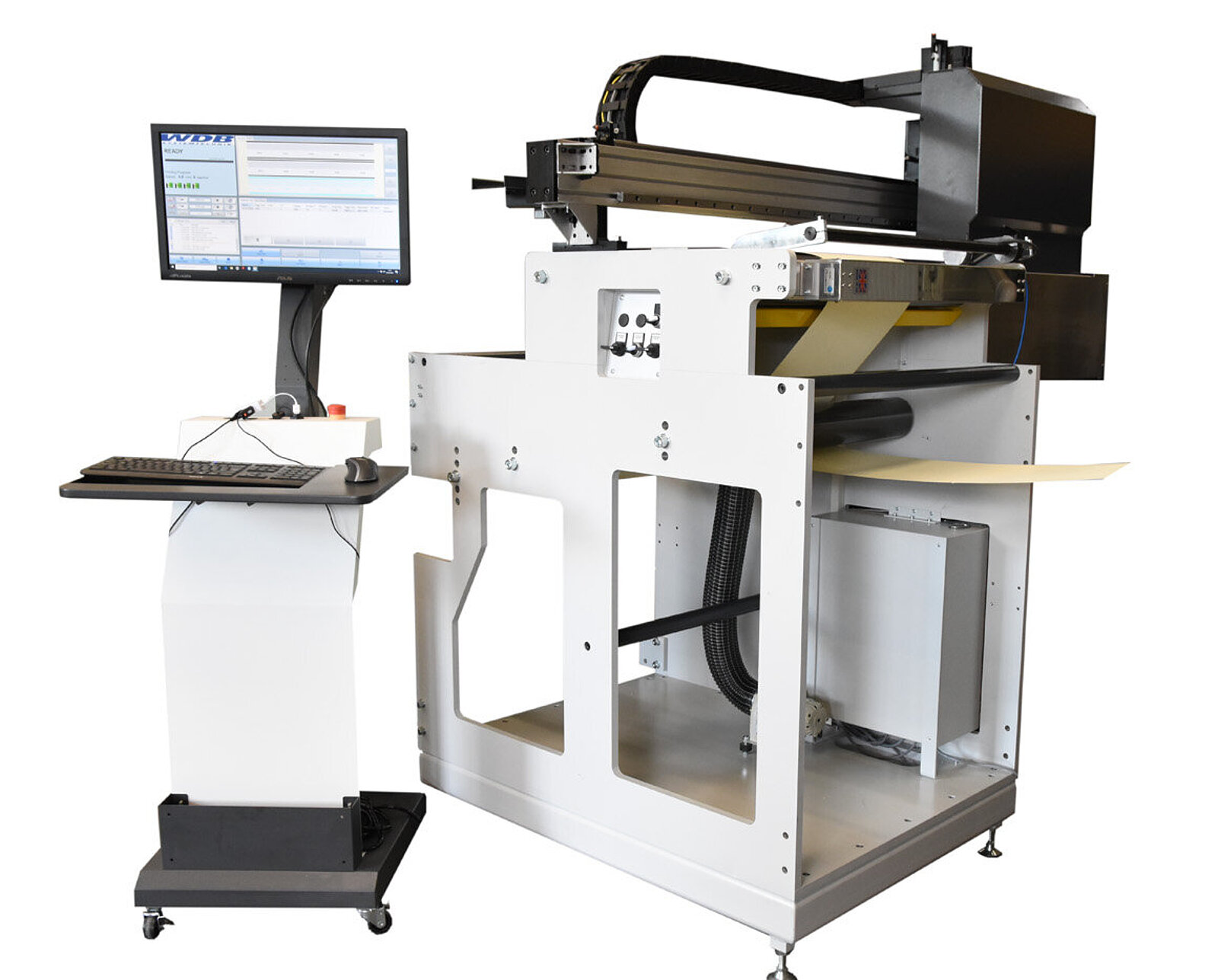

Our CPS module forms the perfect unit with your existing production line. We integrate digital printing into your existing production line to print your variable data and print images directly on your product with great flexibility and without great effort.

Description

Our CPS module forms the perfect unit with your existing production line. We integrate digital printing into your existing production line to print your variable data and print images directly on your product with great flexibility and without great effort.

If you have too little space in your existing machine, we can expand it with new side parts, change the web guidance, integrate UV or IR drying and take care of the pre-treatment.

The module is complete with integrated ink supply, controller, software, touch panel and everything you need to get started immediately.

Grayscale or CMYK

  • 600×600 dpi print resolution
  • Up to 200m/min with high-speed print heads
  • UV or water based inks
  • Automatic cleaning and parking station, for the best possible protection of the print heads and a long service life
  • Simple operating software to control all printer functions
  • Own RIP software for preparing the print data
  • Possibility to print variable data (barcodes, serial numbers, etc.)

Technical Data

Modul Monochrome, multicolor, CMYK
Max. print speed 100m/min at 600×600 DPI or 200m/min at 600×300 DPI
Resolution 600×300 DPI, 600×600 DPI, 600×1200 DPI
Drop size 6pl, 7pl, 11pl, 14pl
Ink system UV or water based inks
Cleaning system Automatic cleaning with parking position to protect the heads from contamination.
File formats TIF, PDF, BMP
Compressed air 6 Bar
Power supply 230/400 VAC 16/32A (depending on configuration)
