CPS LABEL

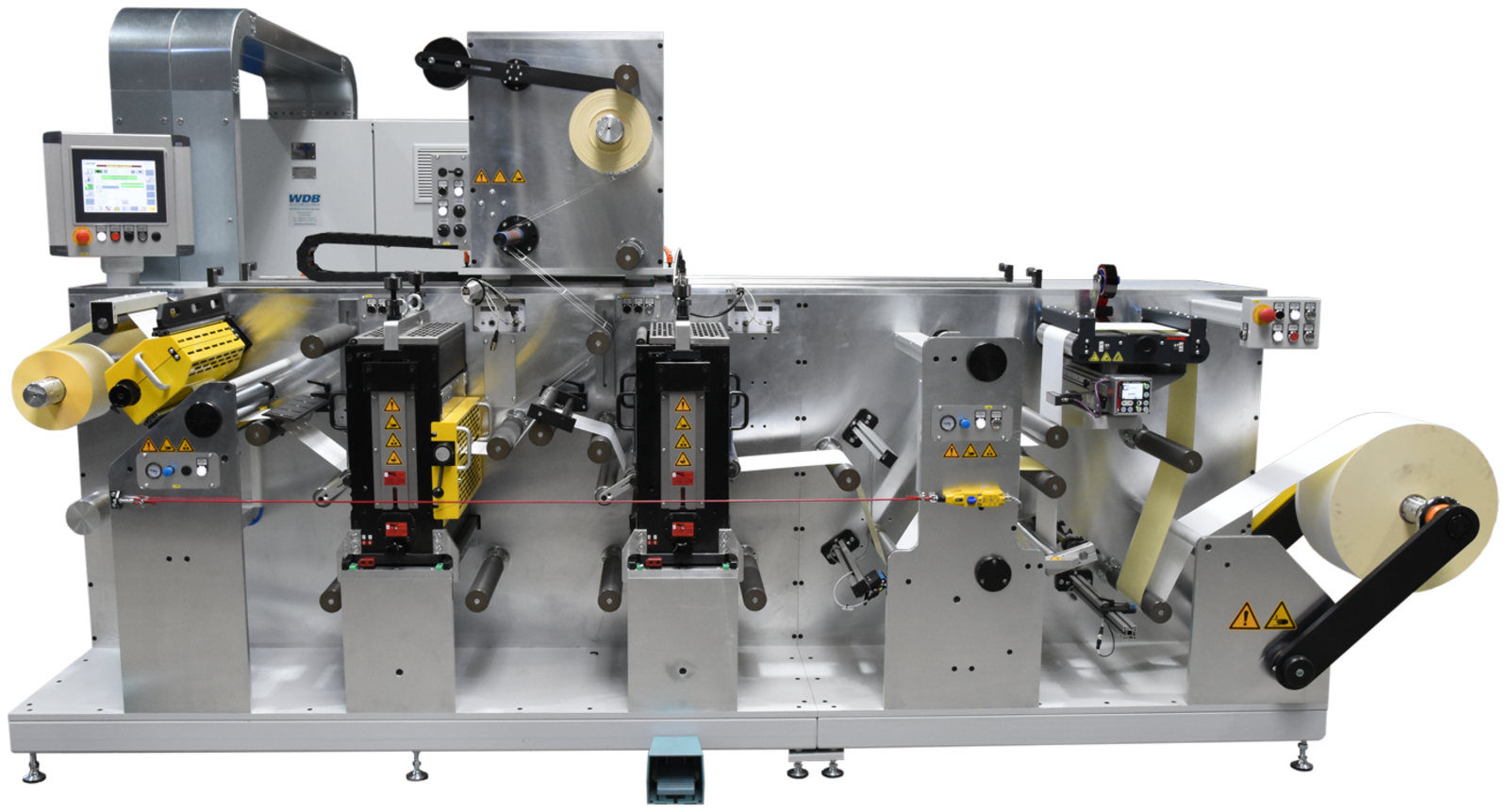

Our label digital printing machine CPS Label combines two work steps. We have integrated digital printing units into our rotary die-cutting machine for maximum efficiency and ease of operation. From the unprinted material web to the finished die-cut product with only one machine!

You have a special request – we manufacture it for you.

Contact us!

Description

digital printing labels die-cutting machine RSM-330 / 2

Our label digital printing machine CPS Label combines two work steps. We have integrated digital printing units into our rotary die-cutting machine for maximum efficiency and ease of operation. From the unprinted material web to the finished die-cut product with only one machine!

  • Precise and sturdy steel construction, to absorb the extremely dynamic punching forces
  • Cross beam made of steel with two fine-thread spindles to transfer the punching pressure to the bearer rings
  • Unwinder with double sided roll support and pneumatic tension shaft
  • side edge control with integrated cutting and gluing table
  • Sensor / Light sensor for flag detection
  • slitting device with four squeezing knives
  • Single-sided grating take-off

Technical Data

Resolution 600 dpi and 70 m/min600 dpi and 70 m/min
Ink system UV or water-based inks
Print width Up to 324 mm
Colors CMYK/ white and varnish possible
Punching width Max. 330 mm
Material width Max. 350 mm
Format length 200 to 635 mm
Roller diameter Unwinder: max. 1000 mm / winder: max. 400 mm
Roll weight Max. 150 kg
Track voltage 20-100 N
Mech. Machine speed 5-100 m/min
