Flexo printing machine

Flexographic printing machines of the type FD2, FD5, FD10 or FD20 are characterised by great rigidity and high individuality. Whether with blocked inking units for bar printing or with special nitrogen UV curing for pharmaceutical printing, whether designed as a servo machine or operated with a gear chain, we build your special printing machine especially designed for your application.

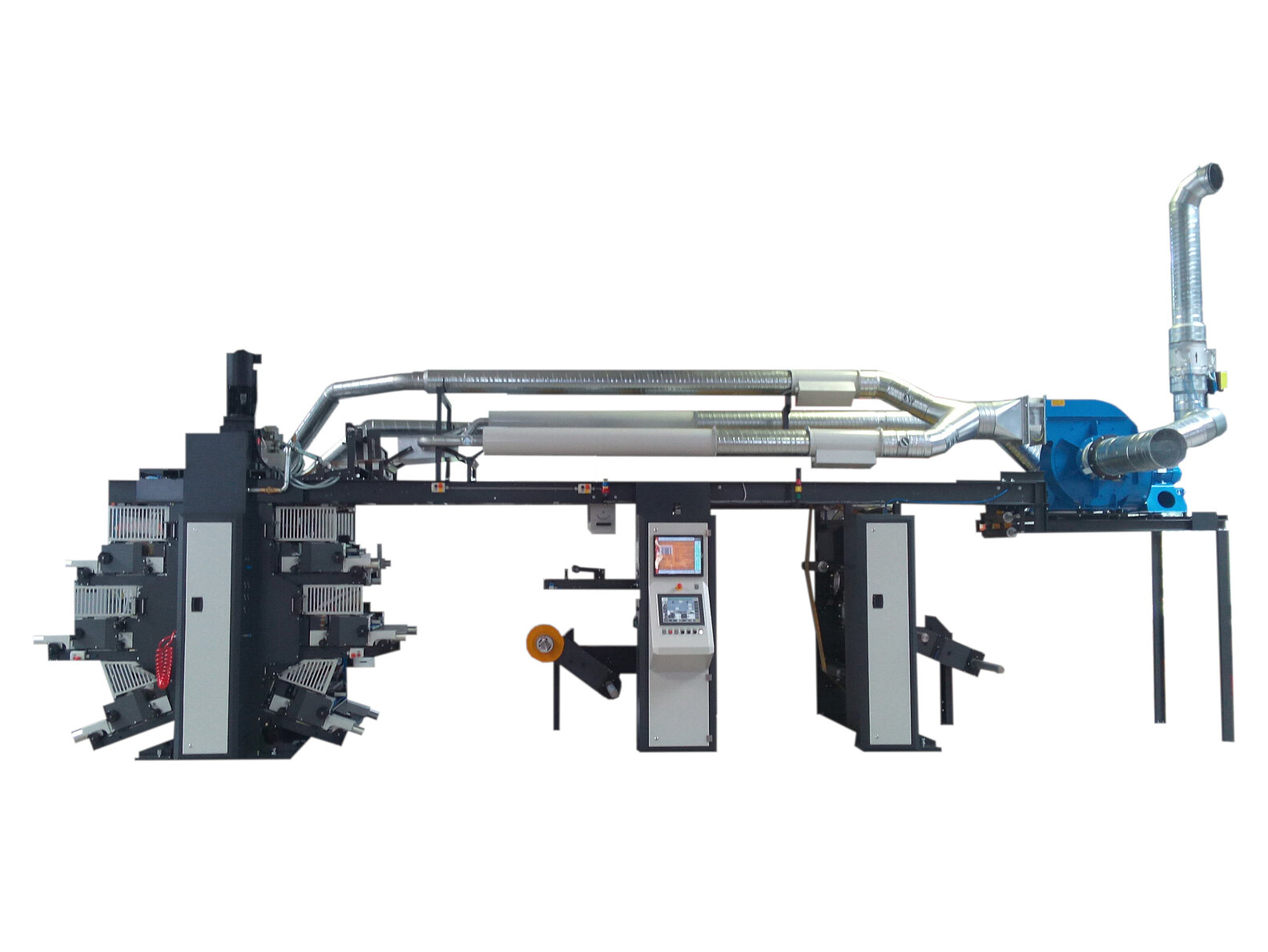

FD2 (central cylinder, gear driven)

This FD2 flexo printing machine, which has been proven a dozen times over, is used by our customers primarily for printing on polyamide (PA) artificial casings. A turning bar device allows simultaneous printing of the front and back side.

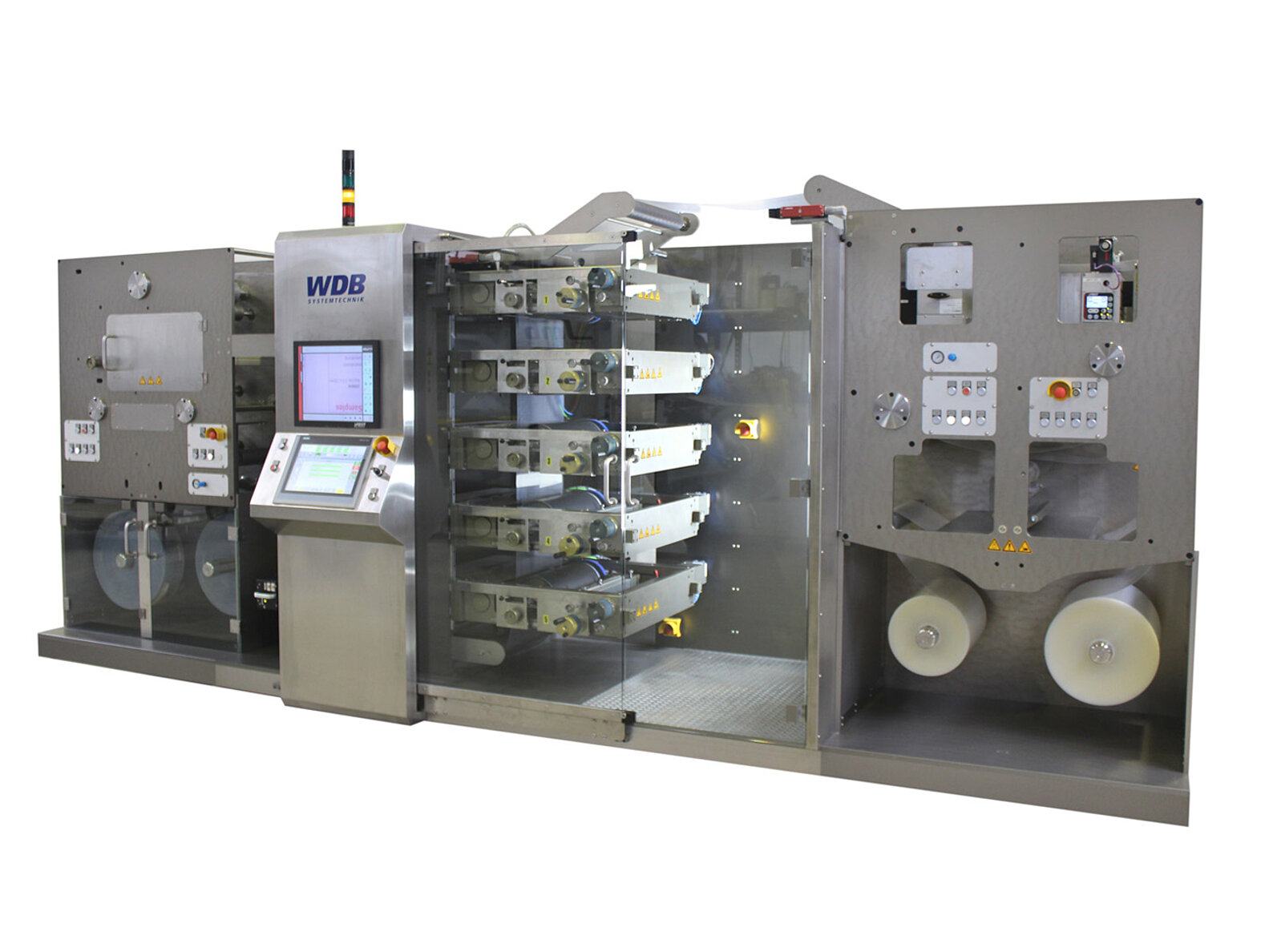

FD 5 (stack design, gear driven)

Specially for printing of medical products

  • 5-colour printing stand with strongly dimensioned
  • counterpressure cylinders
  • 5 complete flexo rotary printing units for UV inks
  • Removable ink fountain (anilox roller, chambered doctor blade and gear wheel) for fast ink change

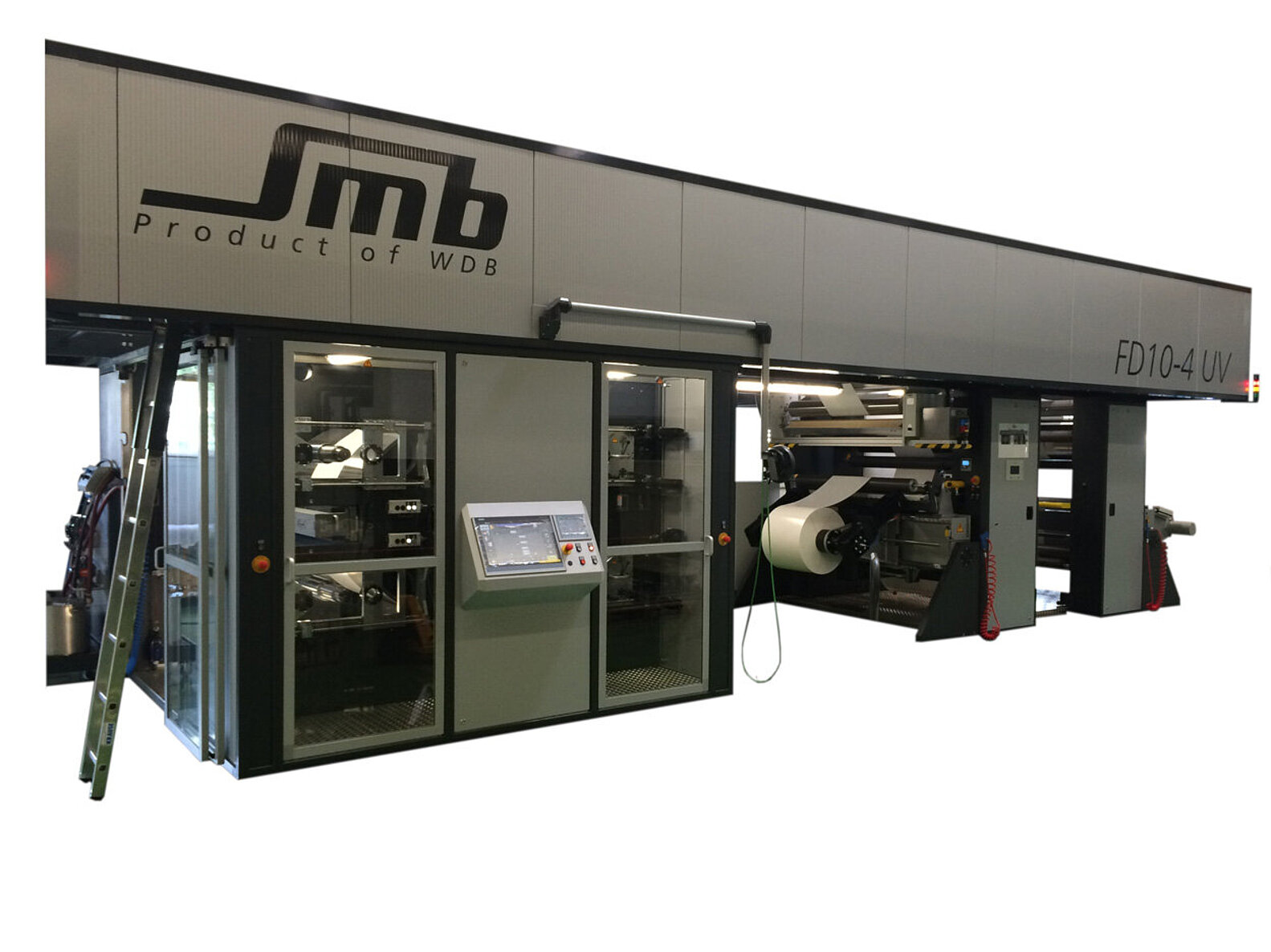

FD 10 (central cylinder, gearless)

  • Printing unit modules as central cylinder design
  • Working width variable according to customer requirements
  • Can be expanded from 4 to 10 printing units on the central cylinder for water- or solvent-based or UV inks
  • Nitrogen N2 UV drying systems optional
  • Blocked printing units for bar printing
  • Gearless System, for impression cylinder and anilox roller

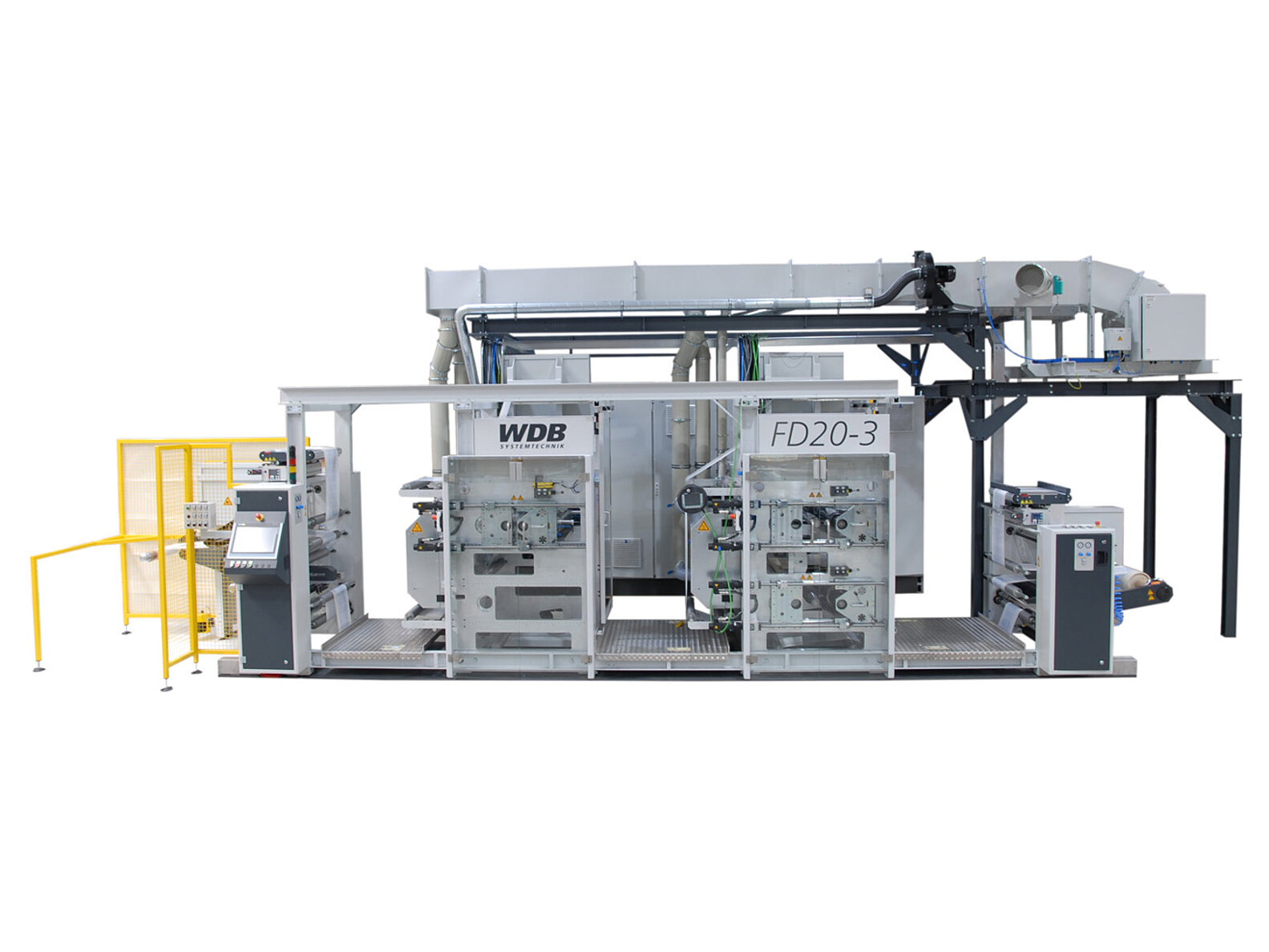

FD20 (stack design, gearless)

  • Two times two-colour printing stand with strongly dimensioned impression cylinder ø250 mm
  • 4 complete flexo rotary printing units for solvent or water based inks
  • Adjustment of the printing cylinder and the anilox roller via linear guides with ball screws on operator and drive side
  • Sleeve technology for cliché cylinder and anilox roller
