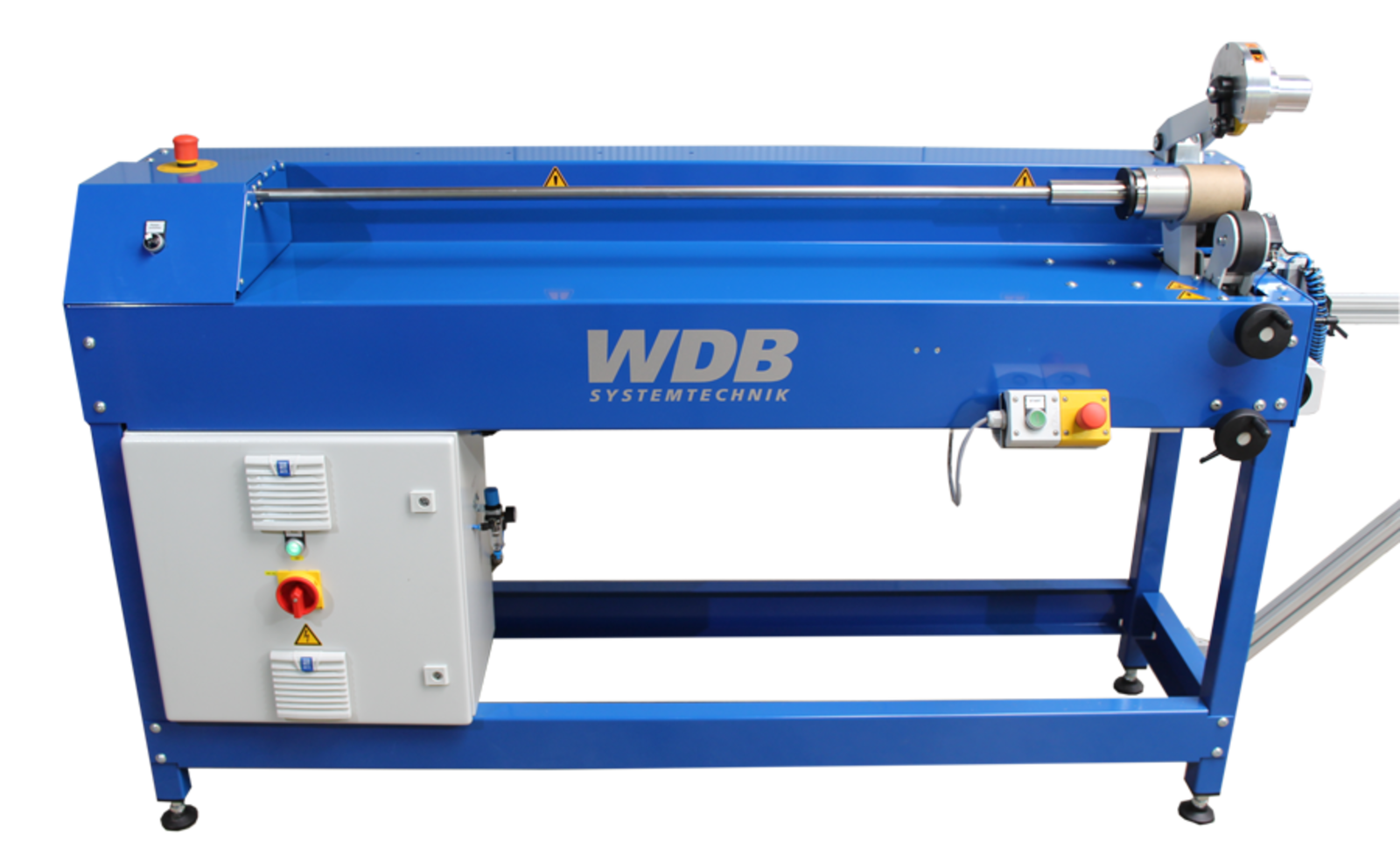

CORE CUTTER K-1200 M

41397

The easy cutting of cardboard tubes will be ensured by the core cutting system of WDB, due to uncompromising and modern technique along with the K-Series. The continuous development of these cardboard cutting machines shows many new technical features.

Description

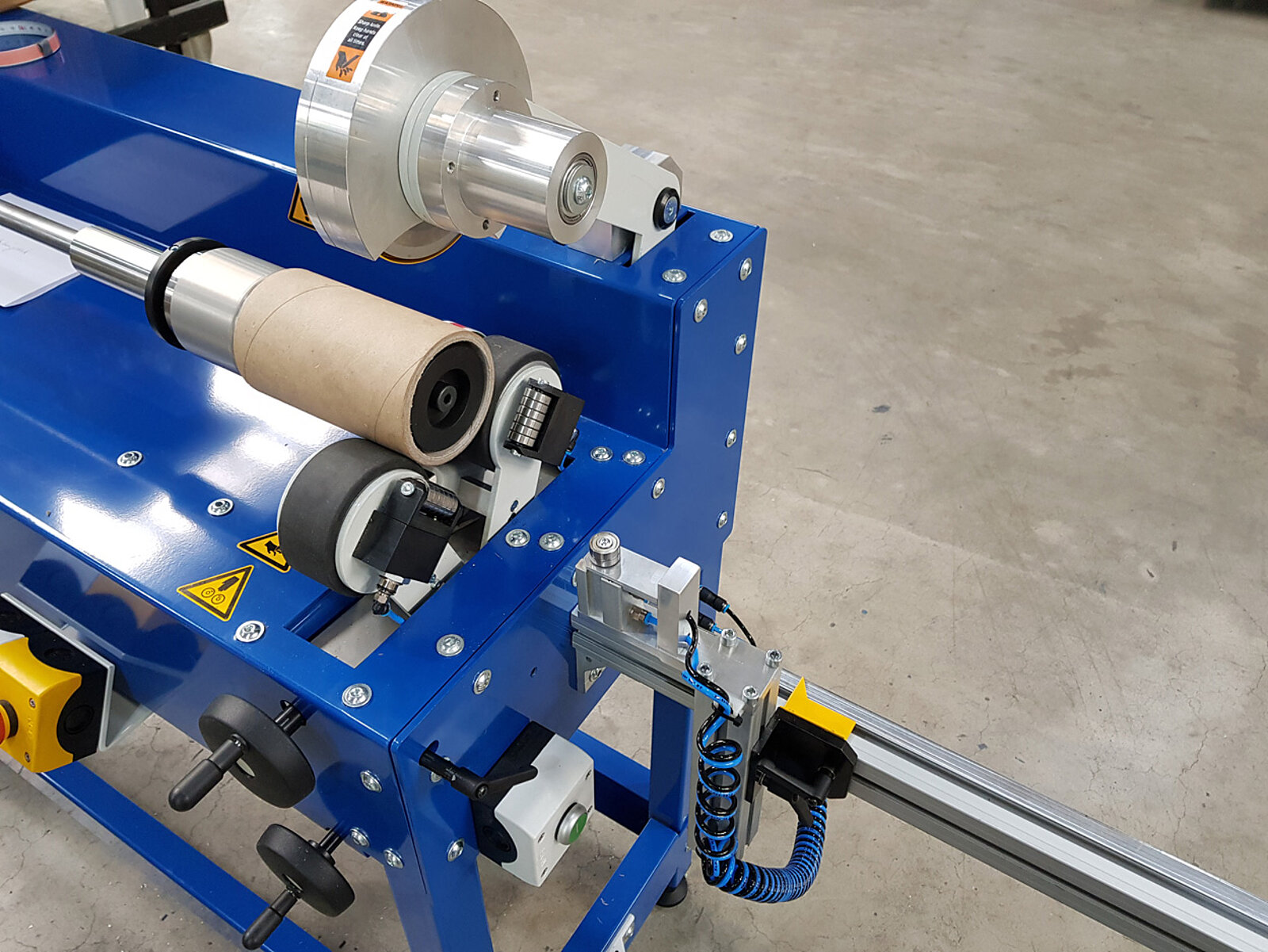

With the manual version of the core cutter, the core must be pushed by hand against a manually adjustable buffer and then the cutting process is released by pressing a button. Here, too, the knife is actuated pneumatically via the microcontroller control system.

Technical Data

Print width Max. up to 3500 mm, standard Size 1200 mm
Cutting length Standard min. 85 mm
  Laser scan of core ends during operation
  Self-developed Vibration Stop prevents the rocking in the cutting process
  Better replacement of cores, due to the special supported main shaft
Machine operation Control panel / manually by control switch
  Drive of the servo motors by a PLC
Roller diameter Min. 25 mm / max. 152 mm
