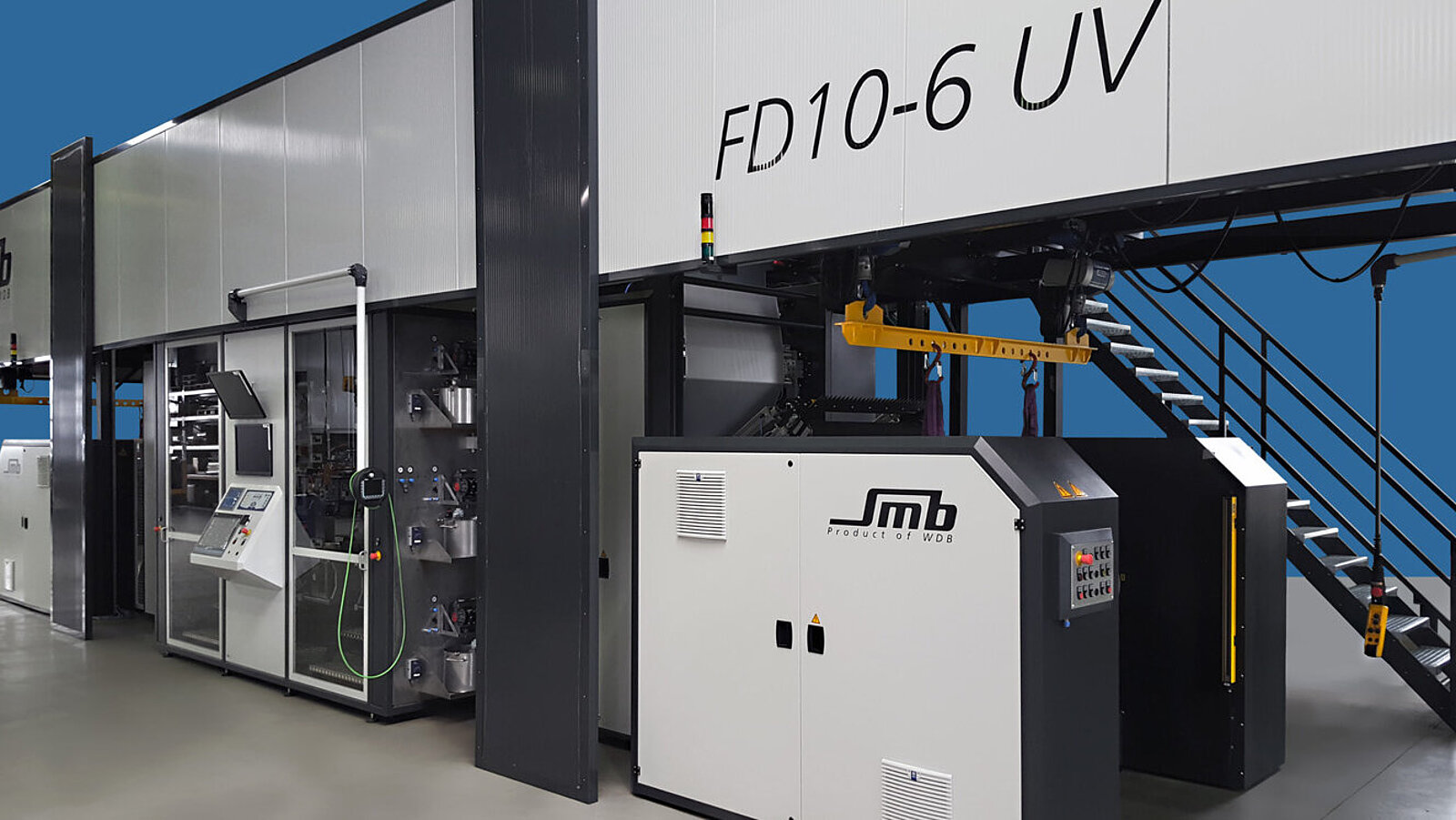

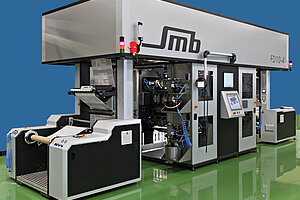

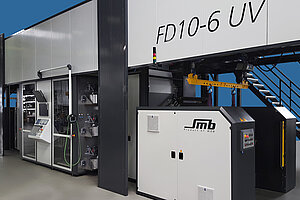

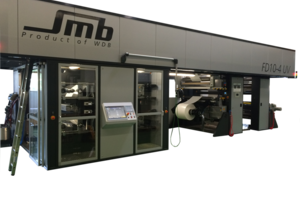

FLEXO PRINTING MACHINE FD10
32776
The flexographic printing machine FD10 as a central cylinder design from WDB Systemtechnik is characterized by the innovative solution of the blocked / tensioned printing units with high rigidity and low vibrations in bar printing. These machines are often used by our customers for printing on the finest aluminium foils or composite foils for pharmaceutical blister packaging. We also use nitrogen N2 UV drying systems to minimize migration and set-off during roll-to-roll printing.
Do you have a special area of application?
Contact us!
Description
Type: FD10 (Central impression, Gearless)
- Printing units designed for central impression printing
- Working width adjustable according to customer request
- Extendable from 4 up to 10 printing units for water and solvent based printing colors or UV printing colors
- Gearless system, for printing cylinder and anilox roller
- Sleeve technology for cliché cylinder and anilox roller
- Open or closed chamber blade system
- Double bearing supported rollers and cylinders

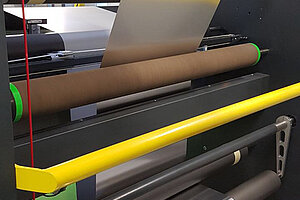

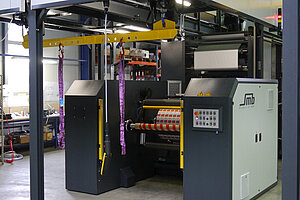

- Winding and unwinding upon customer request from mono up to turret winding systems
- Easy sleeve replacement of the printing cylinder without disassembling
- PLC and Drive Equipment available upon customer request
- Turning Device for front- and backside printing in one production step
- Available Drying Systems: Warm Air, UV or IR

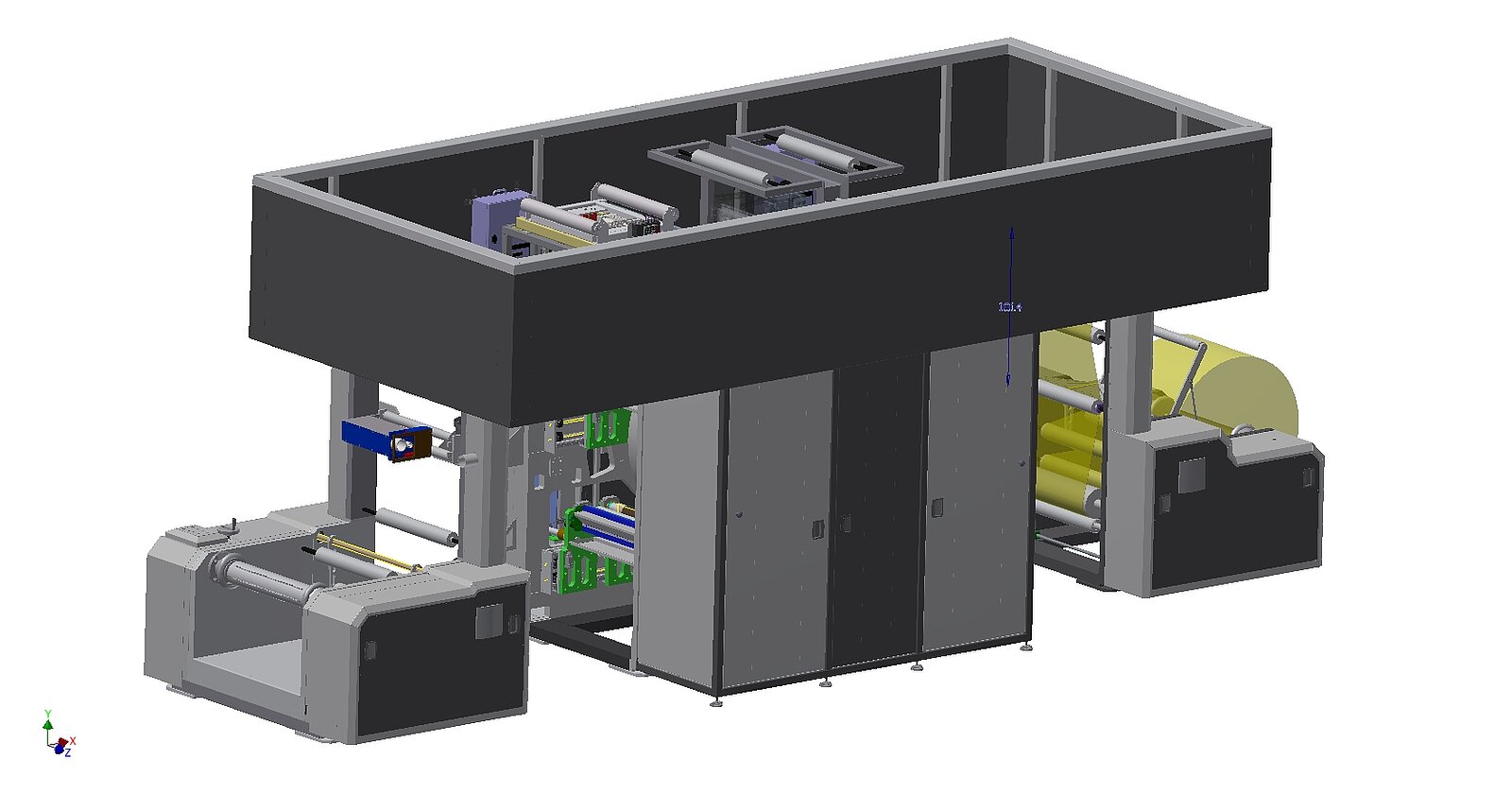

Type: FD 10 (Stack construction, Gearless)
- Printing units designed for stack construction
- Working width adjustable according to customer request
- Water- or solvent-based printing inks or UV printing inks
- Optional blocked printing units
- Gearless system, for printing cylinder and anilox roller
- Sleeve technology for cliché cylinder and anilox roller
- Open or closed chamber blade system
- Double bearing supported rollers and cylinders
- Winding and unwinding upon customer request from mono up to turret winding systems
- Easy sleeve replacement of the printing cylinder without disassembling
- PLC and Drive Equipment available upon customer request
- Turning Device for front- and backside printing in one production step
- Available Drying Systems: Warm Air, UV or IR
Optional:
- Equipment: Corona device, Powderstation, Video Web-Observation
Technical Data
| Working Width | 300 to 1000 mm (upon Customer Request) |
| Format Length | 300 to 800 mm |
| Format steps | Infinitely variable |
| Mechanical Machine Speed | 5–200 m/min. (optional up to 400 m/min.) |
