FLEXO PRINTING MACHINE FD5

32596

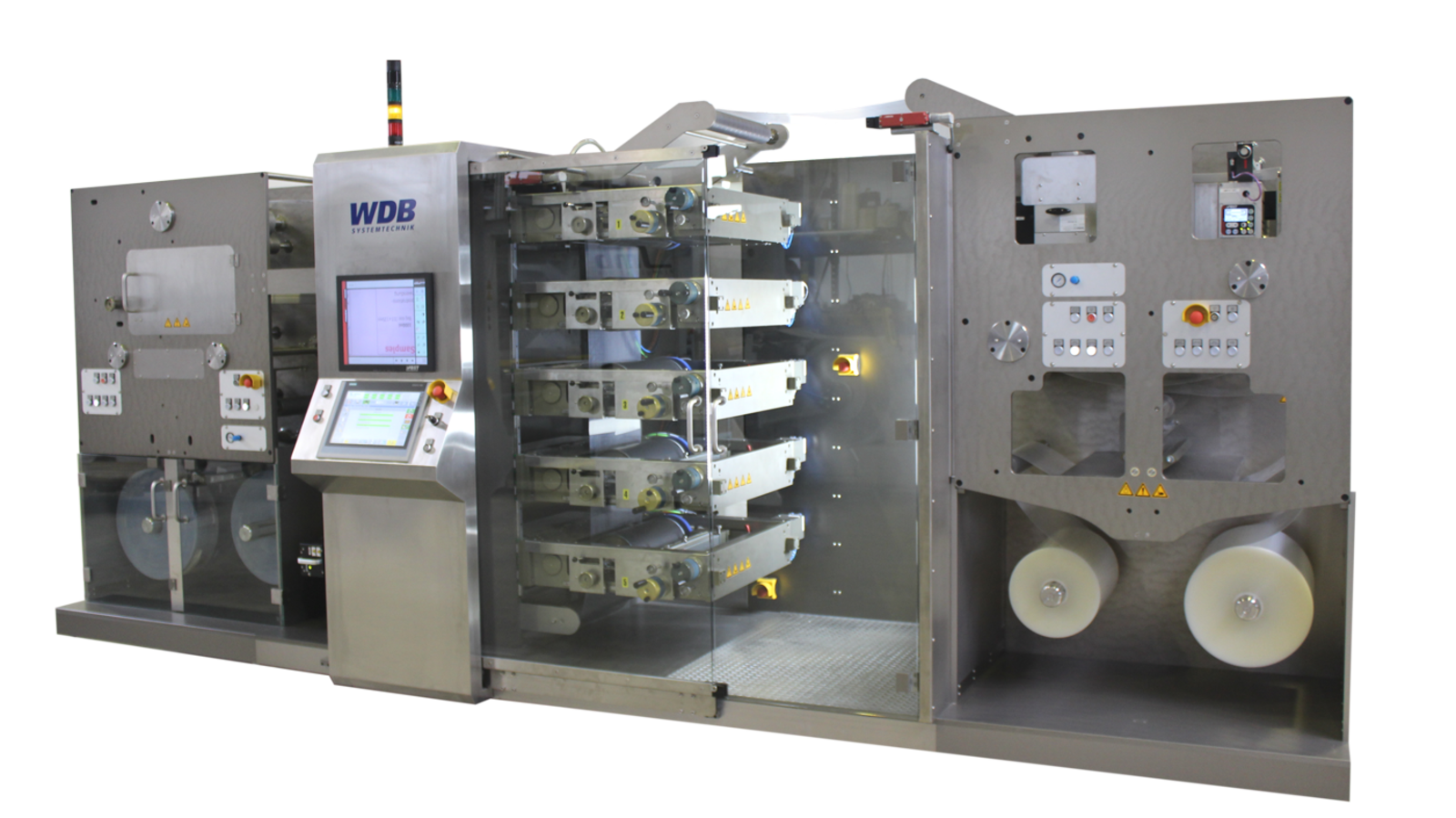

The WDB Systemtechnik flexo printing machine FD5 in column design was developed especially for printing of medical products. The removable ink cassettes, which guarantee an easy and fast ink change, are to be emphasized here. The drive and control technology of a German manufacturer round off the simple operating concept with touch panel.

Do you have special wishes and requirements?

Call us or just use the inquiry function!

Description

Type: FD5 (column design, gearwheel)

  • 5 complete Flexo rotary printing units for UV-Colors

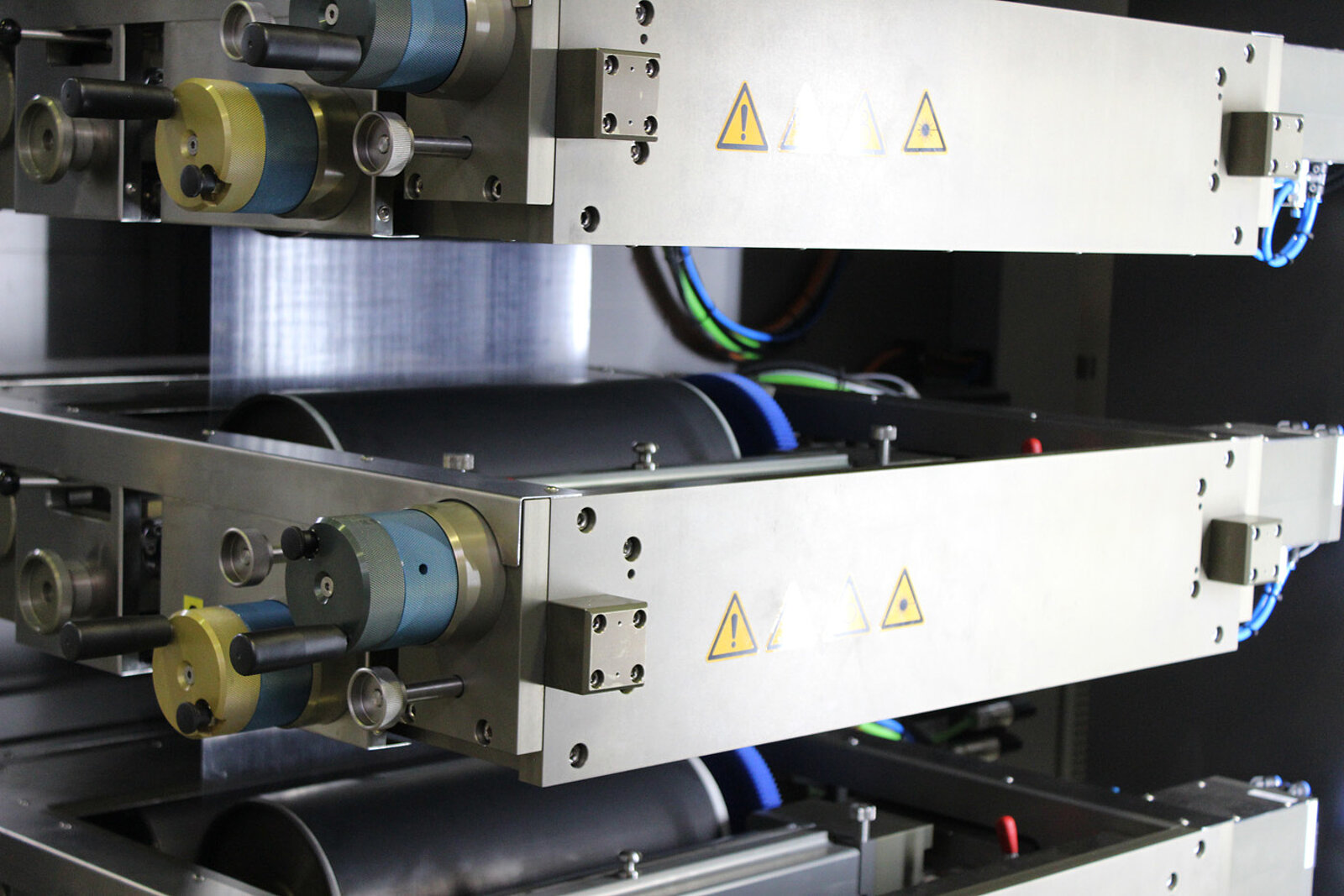

  • Easily removable ink box (anilox roller, squeegee chamber and gear wheel) for quick color change
  • Adjustment of the printing cylinder and anilox roller via linear slides and ball bearing screws at both sides
  • Additional printing ON/ OFF moving in place of the printing cylinder and anilox roller
  • Stepless servo drive for each printing unit
  • Vertical movement of the 5 printing units by max. +/- 100 mm to each other
  • Longitudinal scissor unit
  • Gear wheel driven print unit
  • Double unwinding and rewinding device
  • UV drying equipment
  • Adjustable web tension due to an electrical connected servo drive
  • All product contacted parts consists of hard-coded aluminum, stainless steel or FDA certified materials

Technical Data

Working width max 400 mm (acc. to customer requirement)
Material width 95 – 420 mm
Format length 360 bis 560 mm
Format steps 5 mm
Mechanical speed 4–100 m/min.
Web tension 50 – 300 N
